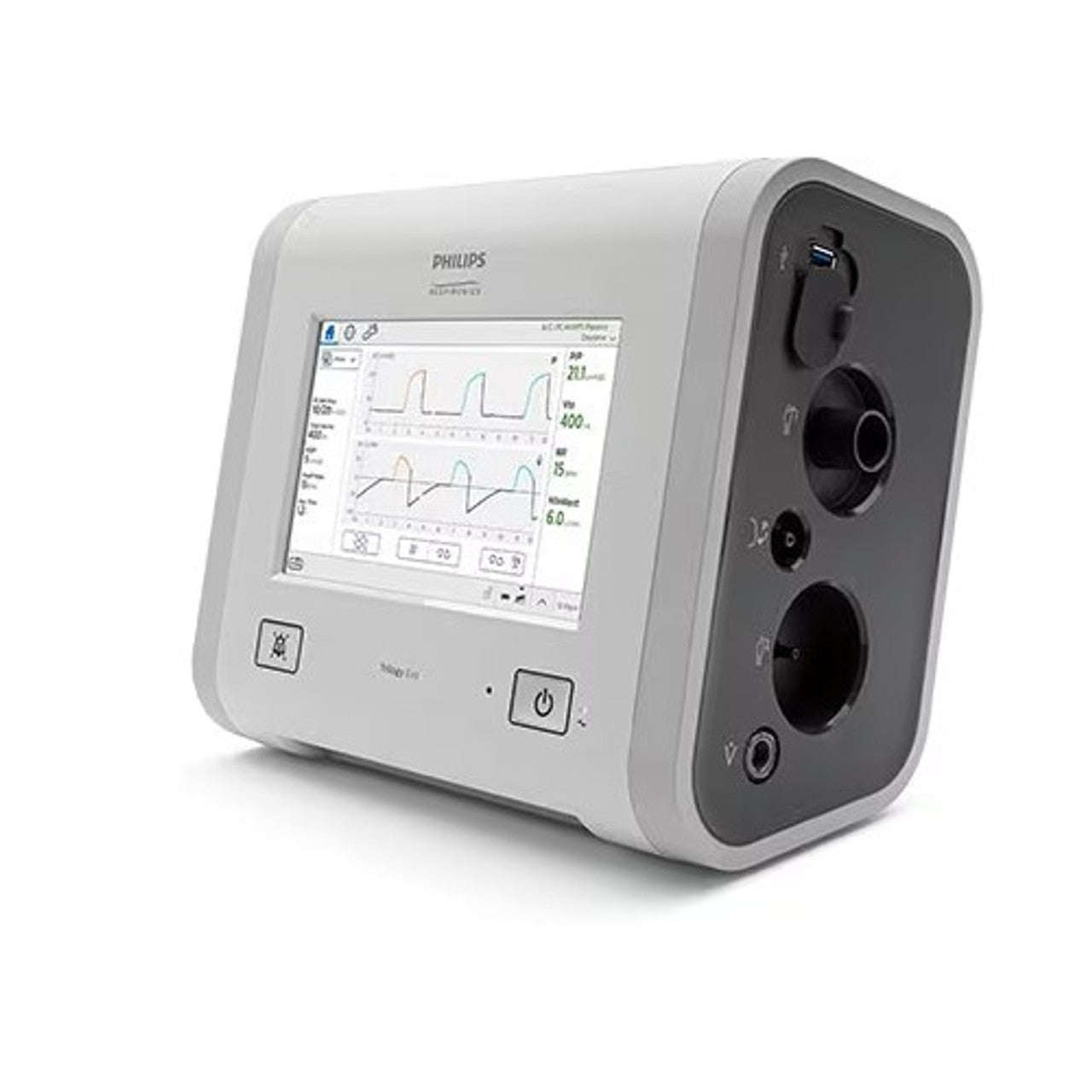

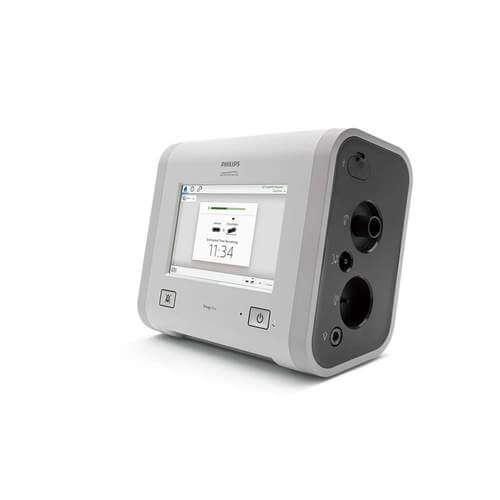

Philips Trilgoy Evo Portable Ventilator

Patient-friendly performance.

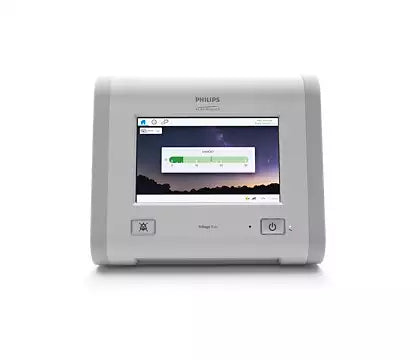

Trilogy Evo ventilators feature an easy-to-use touchscreen with patient-friendly displays. Onscreen help and alarm guidance aid user proficiency—making it easy for caregivers to rapidly feel confident using Trilogy Evo ventilators, and for respiratory patients to feel comfortable.

Simple: Easy-to-learn user interface, configurable to the care environment
Connected: Providing timely care information to the people who need it
Portable: 15 hours of battery life, easily mounts on wheelchairs, and has a convenient carrying bag that lets you see the screen and alarms
Adaptable: Stays with patients as their care settings and needs change
Reliable: The most robust and durable device we’ve ever created

Specifications
Ventilation modes:

• A/C-PC: Assist control (pressure control)
• A/C-VC: Assist control (volume control)
• CPAP: Continuous positive airway pressure
• PSV: Pressure support ventilation
• S/T: Spontaneous/timed ventilation
• SIMV-PC: Synchronized intermittent mandatory ventilation (pressure control)
• SIMV-VC: Synchronized intermittent mandatory ventilation (volume control)
• AVAPS-AE
• MPV-PC: Mouthpiece ventilation (pressure control)
• MPV-VC:  Mouthpiece ventilation (volume control)

Physical Specifications

Weight and Dimensions:

• 5.2 Kg (11.5 lbs) device
• 5.8 Kg (12.7 lbs) with detachable battery
• 6.3 Kg (13.8 lbs) with oxygen blender and detachable battery
• Size without oxygen blender: 16.5 cm D x 28.6 cm W x 24.5 cm H 6.48” D x 11.25” W x 9.65” H
• With oxygen blender: 19.3 cm D x 28.6 cm W x 24.5 cm H 7.6” D x 11.25” W x 9.65” H
• Screen dimensions: 8”, 20.32 cm
• Ingress protection IP22: protection against finger-sized objects and protected against dripping water when tilted up to 15 degrees.

 Measured and displayed patient parameters

• Minute ventilation (MinVent) – 0 to 30 l/min
• Leak – 0 to 200 l/min
• Respiratory rate (RR) – 0 to 90 BPM
• Peak inspiratory fl ow (PIF) – 0 to 200 l/min
• Peak inspiratory pressure (PIP) – 0 to 90 cmH2O
• Mean airway pressure – 0 to 90 cmH2O
• Percentage spontaneous triggered breaths (%Spont Trig) – 0 to 100%
• I:E ratio – 9.9:1 to 1:9.9
• Dynamic compliance (Dyn C) – 1 to 100 ml/cmH2O
• Dynamic resistance (Dyn R) – 5 to 200 cmH2O/l/sec
• Dynamic plateau pressure (Dyn Pplat) – 0 to 90 cmH2O
• Auto-PEEP – 0 to 20 cmH2O
• FiO2 with FiO2 sensor – 21% to 100%
• SpO2 with pulse oximeter accessory – 0 to 100%
• Pulse rate with pulse oximeter accessory – 18 to 321 beats per minute
• EtCO2 with CO2 accessory – 0 to 150 mmHg

 Controls:

• AVAPS with passive circuit PSV, S/T, and A/C-PC modes only
• Tidal volume 35 – 2000 ml on Dual Limb and Active Flow circuits,
  50 – 2000 ml on passive and active PAP circuits
• Breath rate 0 – 80 BPM
• PEEP 0 – 35 cmH20 for active circuits
  3 – 25 cmH20 for passive circuits
• EPAP/CPAP 3 – 25 cmH20
• IPAP 3 – 60 cmH20
• Pressure support/pressure control 0 – 60 cmH20
• Inspiratory time 0.3 – 5.0s
• Rise time 0 – 6
• Triggering and cycling Off , AutoTrak, Sensitive AutoTrak, and Flow Trigger
• Flow trigger sensitivity 0.5 – 9 l/min
• Flow cycle sensitivity 10% – 90% of peak flow
• Flow pattern Square, Ramp
• FiO2 21% – 100%
• Inspiratory time min/max 0.3 – 3.0 sec
• Backup ventilation ON – OFF
